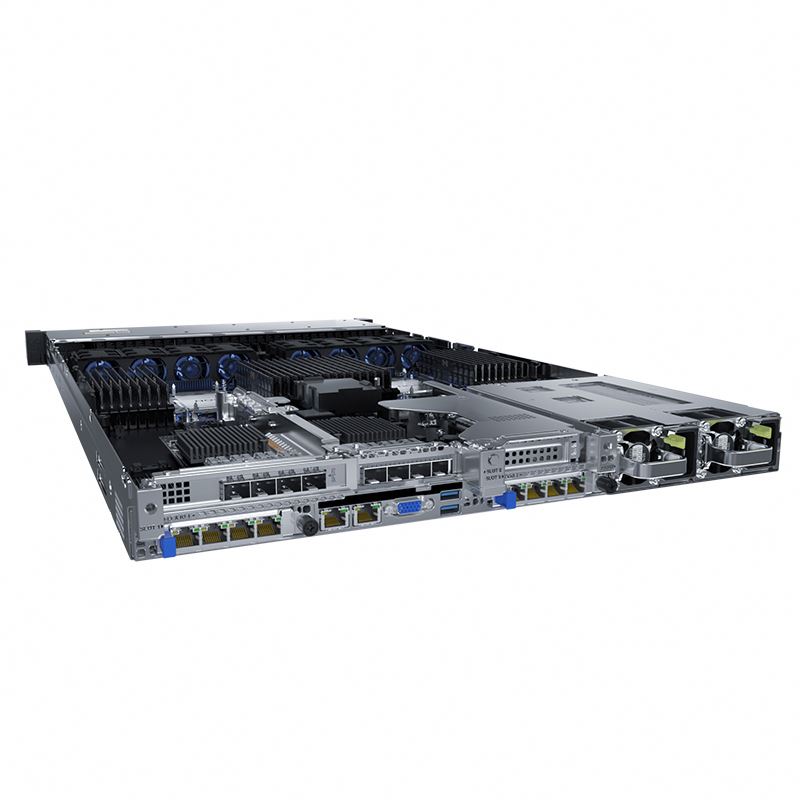

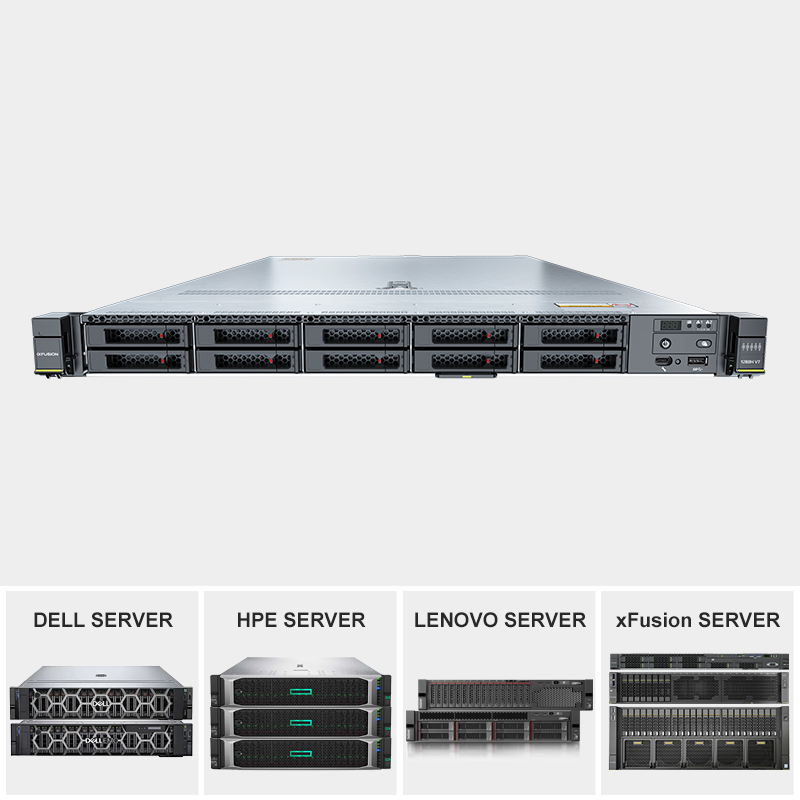

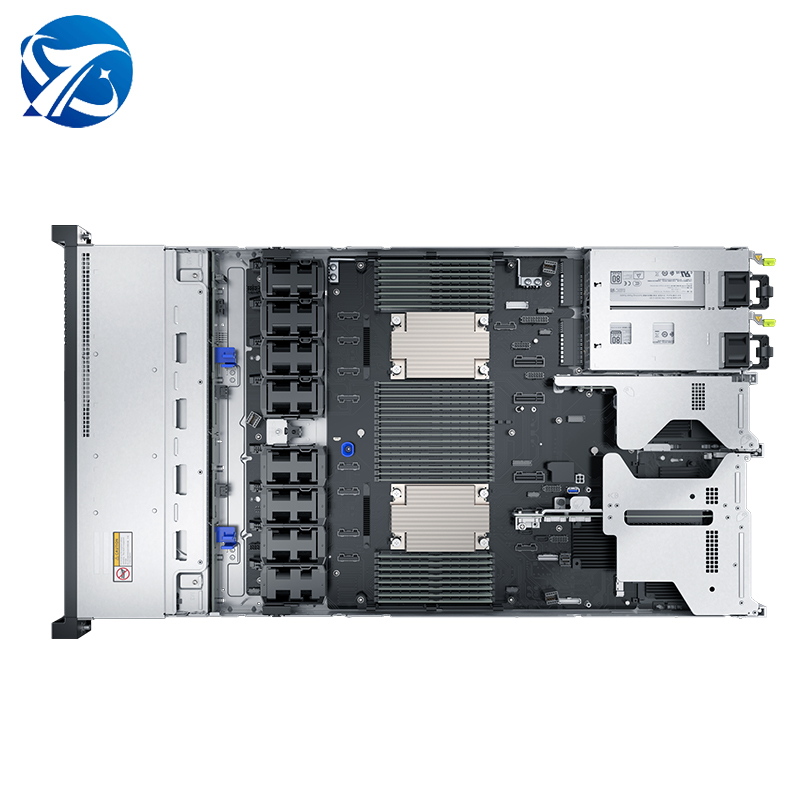

FusionServer 1288H V7 1U rack server is designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise markets, and telecom business applications. It is a new generation of 1U 2-socket rack servers with a wide range of applications. The 1288H V7 is suitable for IT core businesses, virtualization, scientific computing, and other complex workloads, offering low energy consumption, strong expansion capabilities, high reliability, easy management, and easy deployment.
| Technical Specifications | |
|---|---|
| Server Model | FusionServer 1288H V7 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive Bays |
Supports various drive configurations and hot-swappable drives: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage Controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Rail | Rail kit included |
| Height x Width x Depth |
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs (1000 W at 100 V to 127 V AC; 1500 W at 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs (1800 W at 200 V to 220 V AC; 2000 W at 220 V to 240 V AC) |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We usually quote within 24 hours after receiving your inquiry. If you are in urgent need, please inform us by email or phone call, and we will prioritize your request.
Our whole machine products provide a 3-year replacement warranty. We maintain a complete and robust supply chain system to address any technical or after-sales problems efficiently.
All of our memory modules utilize original, brand-name chips. We strictly test every memory component before shipping to ensure stability and compatibility.
We accept secure transfers including bank cards, credit cards, T/T, and other protected payment channels to ensure transaction safety and eliminate concerns.
Different products have different MOQ requirements. Contact us with your specifications, and we will do our best to meet your needs. Small test orders are also welcome.
We specialize in this field with optimized vertical sourcing. While external designs may look similar, price differences stem from internal components and quality grades. We focus strictly on offering high-tier configurations that support reliable, long-term business.
